PRODUCT SERIES
<
>
<>

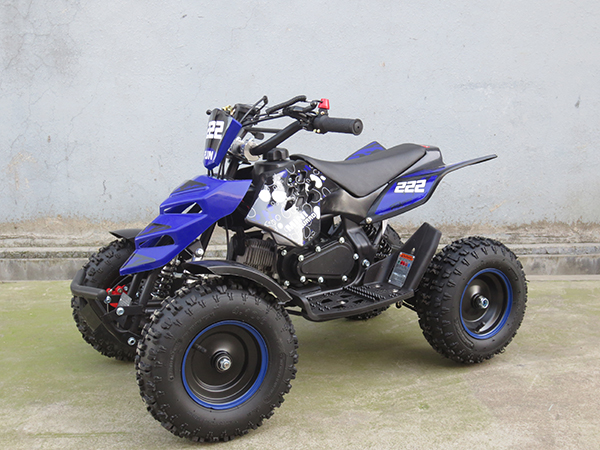

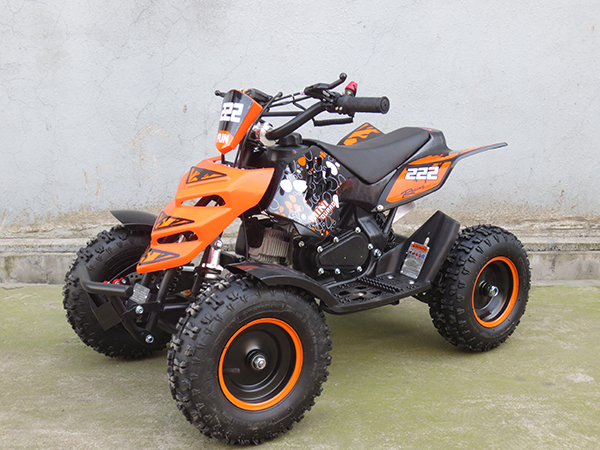

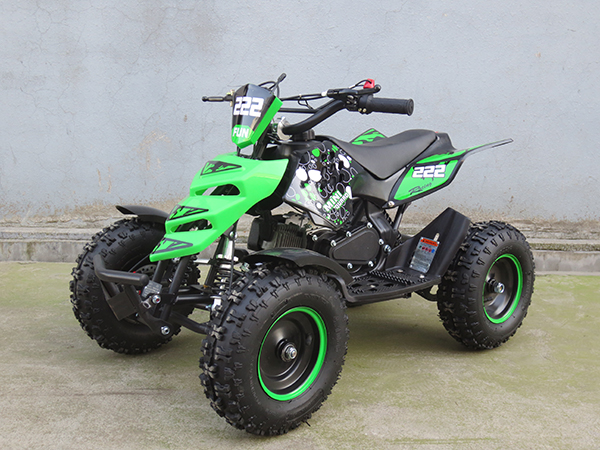

MODLE: ATV-5A

Name: ATV-5A

Engine:49CC,single cylinder,air cooled,2-stroke
Transmission:chain drive,auto clutch
Start mode:pull start
Dimensions(L*W*H):100×58×65CM
Wheelbase:700mm
Seat Height:435mm
Min.ground clearance:45mm
Fuel tank capacity:1L
Wheel size:front & rear :  4inch
Brake system:(F/R):disc/disc
Max speed:40KM/H
Rated loading90KG
Dry weight:30.5KG
Carton dimensions(L*W*H):980X560X420mm
Conveyance:288PCS/40"HQ
